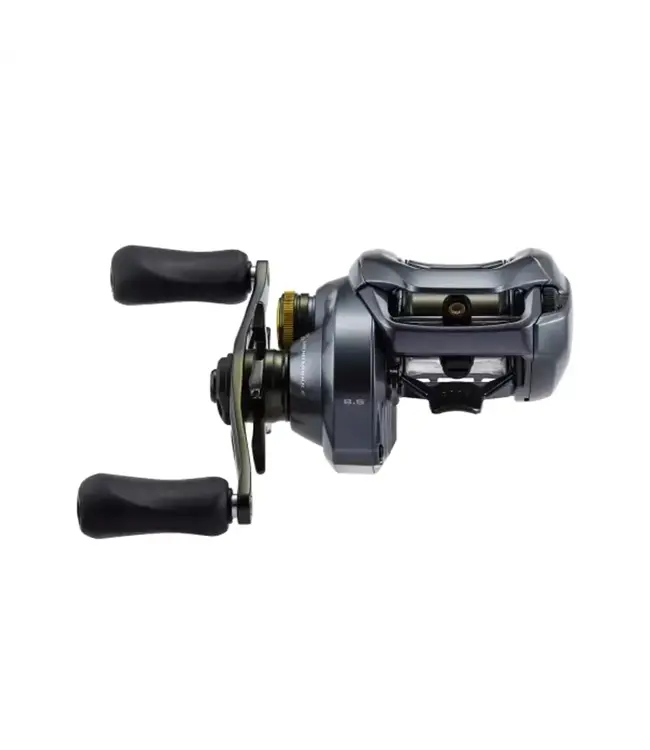

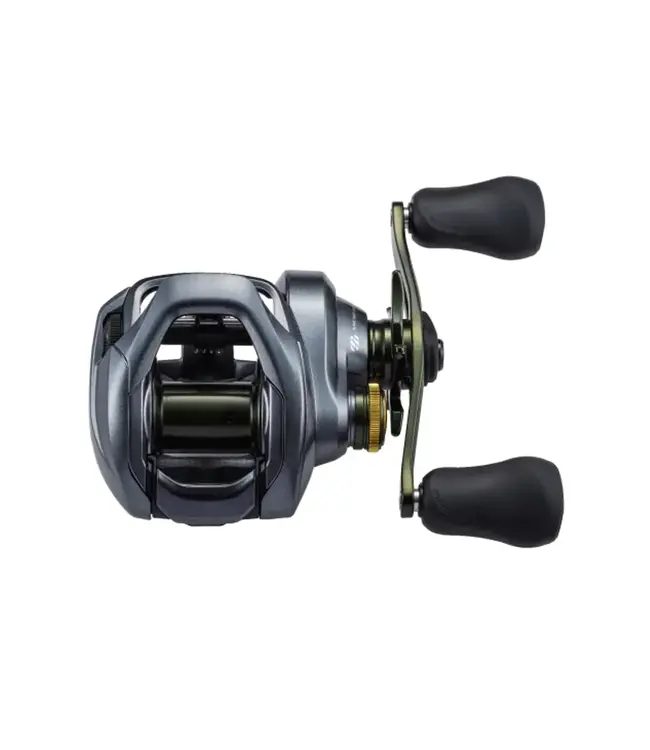

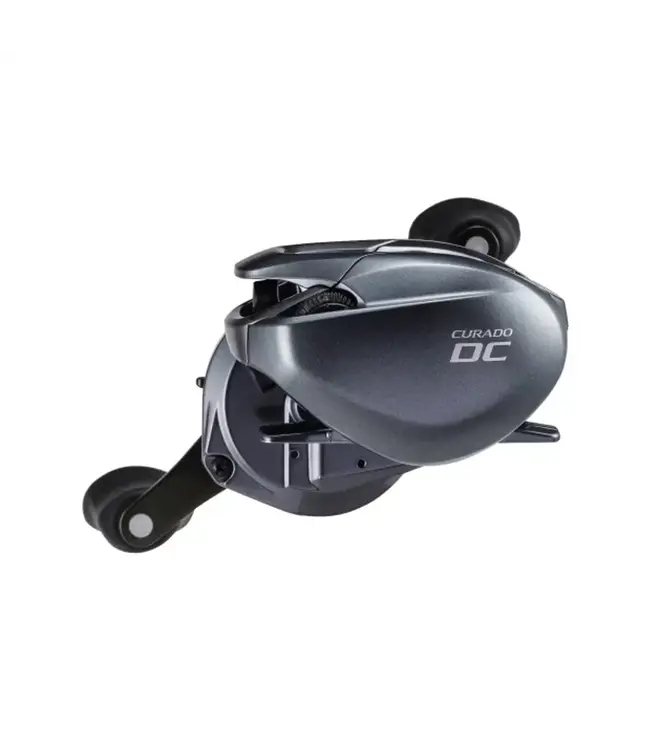

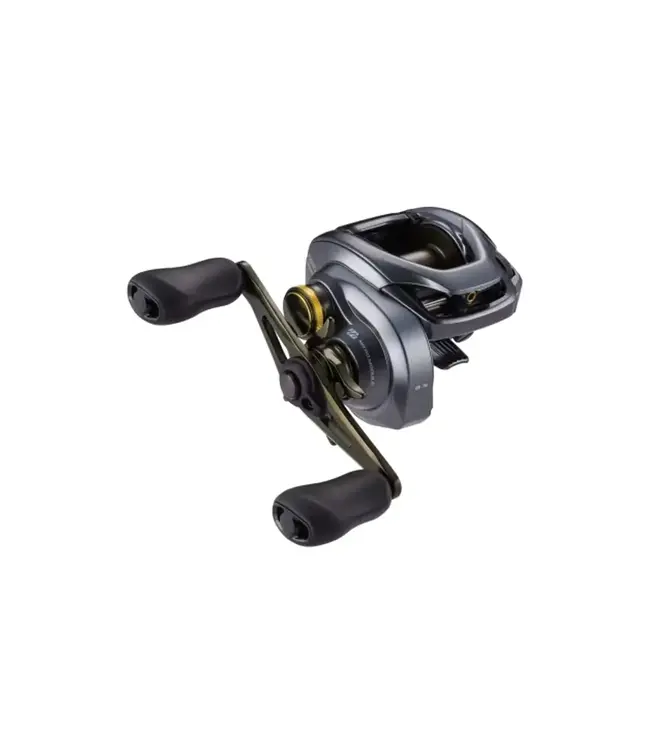

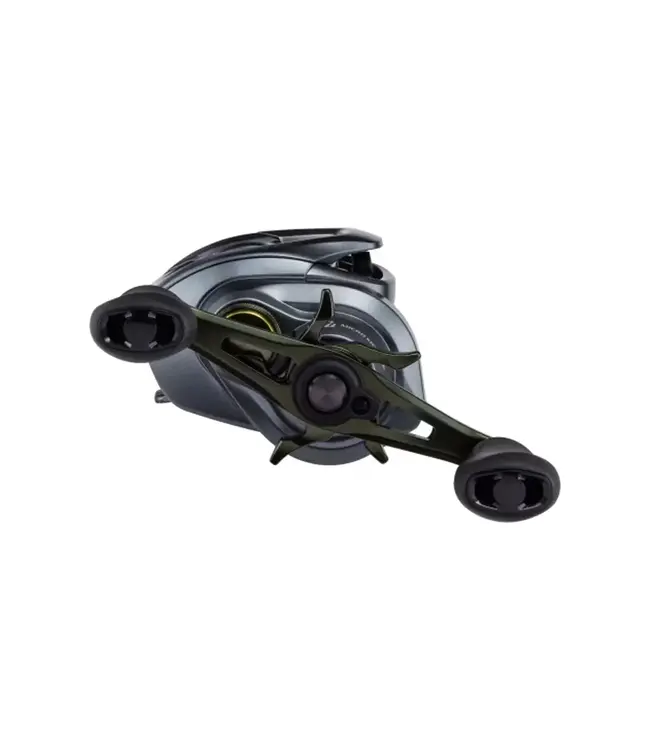

Shimano's legendary prowess in DC technology continues with the addition of the all-new Curado DC 200, an expansion to the tournament-proven Curado family of low-profile reels. The Curado DC 200 provides anglers up to 40% more line capacity for added versatility and performance using a wide range of baits and techniques, especially those looking to leverage heavier line, larger lures or maximize casting performance. The I-DC4 unit provides anglers with four distinct settings to control how much braking the DC technology applies to the spool during the cast for ultimate control while minimizing backlashes when long-bombing casts or fishing in windy conditions. Fish smarter and leverage Shimano's premium DC technology within the all-new Curado 200 DC.

Technology:

• X-Ship Spinning: X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
• HAGANE Body Baitcasting: The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
• MicroModule Gear Baitcasting: The MicroModule Gear system creates a smooth retrieve by utilizing smaller teeth to increase the number of contact points between the drive gear and pinion gear. Ultimately, this produces a more efficient gear train with less of a gear feel.
• S3D Spool: S3D technology leads to significantly reduced spool vibration. By designing and constructing a balanced and uniform thin-wall aluminum spool, S3D creates an incredibly smooth feeling when casting and retrieving lures.
• I-DC4: Intelligent Digital Control braking system with an easy to use, 4 modes can be set using the external dial for Max Distance, Braided/Mono line, Fluorocarbon line and Skipping for you to place the lure at those hard to reach places. This will allow anglers to fish a wide variety of lures, in any conditions, with minimal adjustment to the reel. I-DC4 reads various situation changes from casting to arrival of lure at target spot through the reading of the spool's rotation and makes fine adjustments to the brake accordingly
• S A-RB Baitcasting: S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
• Super Free Spool: Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
• CI4+ Spinning: CI4 is a Shimano original material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material and is 2.5x more rigid than its predecessor. While improving lightness and rigidity, reel bodies and rotors built with CI4+ are further reduced in size and weight.
• Cross Carbon Drag Spinning: The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.

Specifications:
