Shimano Tranx 500 Reel
C$799.99 Excl. tax
Add to cart
Shimano Tranx 500 Reel
SHIMANO

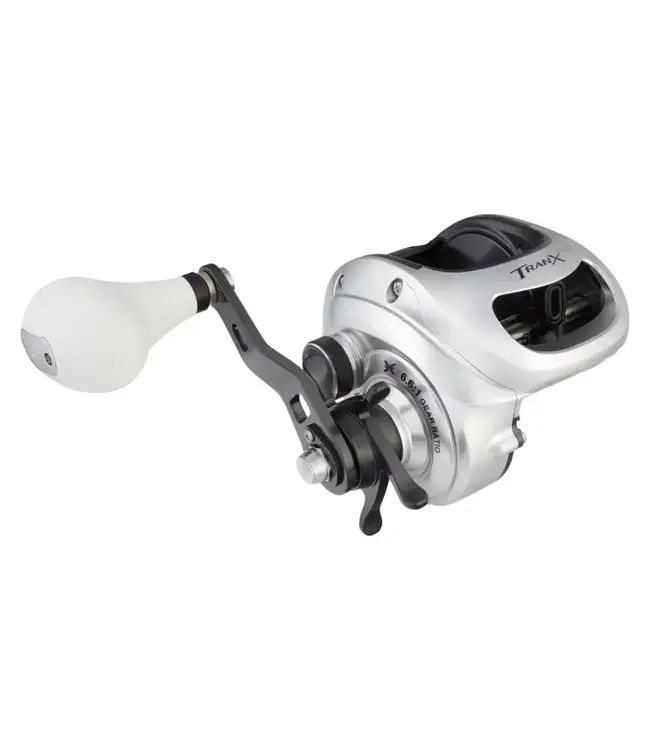

Shimano Tranx 500 Reel

C$799.99 Excl. tax
In stock

The Tranx features a revolutionary design and shape that provides the comfort of low-profile reel with the capacity of a conventional reel. Read more.

This item will ship out of our warehouse in 1-2 business days

Product description

The Tranx features a revolutionary design and shape that provides the comfort of low-profile reel with the capacity of a conventional reel. X-Ship and HEG technologies combine to provide massive cranking power with a smooth and effortless retrieve. The Tranx is offered in High Gear (HG) and Power Gear (PG) models to cover a wide range of applications.

Technology:
  • Cross Carbon Drag: This drag material provides a wider range of drag settings, along with the smoothest Shimano drag performance ever.
  • Hagane Body: a metal reel body with high rigidity. The body stiffness and impact resistance virtually eliminates body flexing. The result transforms the angler's actions directly into cranking power. It's efficiency through strength.
  • S A-RB: These bearings have been through the same process as our A-RB bearings, but feature shields on both sides of the bearings that reduce the possibility of salt or sand inhibiting the bearing's rotation
  • Super Free Spool: was designed to eliminate friction on the spool shaft during the cast. In standard baitcasting reels, when the clutch bar is pressed down, the pinion gear is freed and actually can drag on the spool shaft creating friction that can limit the length of a cast. With Super Free Spool the pinion gear is supported by a ball bearing so that when the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result is zero friction upon the spool shaft
  • VBS: uses centrifugal force rather than magnets to aid in controlling the cast. When turned on, the individual brake weights are forced outward at the beginning of the cast when backlashes most often occur, causing friction that reduces the speed of the spool. Once the spool speed begins to slow, the pressure with which the brake weights contact the raceway lessens, allowing the spool to continue spinning
  • X-Ship: provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This means the gears will stay in the same position under the heaviest loads. The added benefit is that friction between the spool shaft and gear are eliminated. This will enhance the casting performance of the reel with lighter lures, and allow for longer casts.

Specifications:

SKU

GEAR RATIO

MAX DRAG (LB)

WEIGHT (OZ)

MONO LINE CAPACITY (LB-YD)

POWERPRO LINE CAPACITY (LB-YD)

LINE RETRIEVE PER CRANK (IN)

BALL BEARINGS

TRX500HG    6.6   25   20 30-160, 40-120, 50-100 50-420, 65-270,    80-210          43       7/1
TRX500PG    4.6  25   20 30-160, 40-120, 50-100 50-420, 65-270,    80-210          30       7/1
